OUR PRODUCTS
As a pioneer in custom machinery, Vaclift Solutions is renowned for our equipment, which excels in delicately and precisely lifting heavy glass.
While our machinery is specialized in flat glass applications, its capabilities extend far beyond glass lifting. Our equipment is versatile, capable of lifting a wide range of materials including curved glass, metal pieces in various shapes, precast concrete, textured glass, rigid foams, plywood, sheetrock, assembled frames, curtain walls, etched glass, prefab steel-studded wall sections, and other heavy elements.
At the heart of our machinery's versatility are the vacuum system and cup assemblies, all meticulously crafted in-house. The interchangeable parts across machines provide flexibility, allowing us to offer tailored lifting solutions for a diverse array of materials. Our primary focus is on simplifying, securing, and refining the installation processes for glass and other materials. We are committed to addressing your most significant challenges by delivering state-of-the-art equipment, whether you require a walk-behind, below-the-hook, or fork-mounted manipulator.
PL 1000
DOWNLOAD SPECS- Max lifting capacity 1000 pounds (with counterweight)
- Maximum height 12′, 13′ for skylight
- 31″ wide
- 48″ tall
- 70″ long closed (including cups)
- Gross weight 900 pounds
- 2 stage elevation system
- Comes with 2 cups
- Power tilt
- Manual 90 degree to side for moving windows through doorways
- Manual rotation of the glass in lifting position
- Electrically powered hydraulic & vacuum
GM 800
DOWNLOAD SPECSThe GM 800
- Max lifting capacity 800 pounds
- Maximum height 12′, skylight to 13′
- 32″ wide
- 6′ tall
- 6′ long closed
- Gross weight 1800 pounds
- Double redundant vacuum system
- Comes with 2 ea. 20″ x 12″ cups, standard
Options available:
- Crab Crawl function
- EZ Pick function
- Lateral Side Shift
- Power Rotation
- 4 ea. 7” x 20” cups, with 2 ea. 4’ or 6’ extensions
- Supplementary counterweight plates, 75 lbs. ea.
GM 1200
DOWNLOAD SPECSThe GM 1200
- Max lifting capacity 1200 pounds
- Maximum height 12′, skylight to 13′
- 34″ wide
- 78″ tall
- 80″ closed chassis length
- Gross weight 2300 pounds
- Double redundant vacuum system
- Comes with 2 ea. 20″ x 12″ cups, standard
Options Available:
- Crab Crawl function
- EZ Pick function
- Lateral Side Shift
- Power Rotation
- 4 ea. 7” x 20” cups, with 2 ea. 4’ or 6’ extensions
- Supplementary counterweight plates, 75 lbs. ea.
GM 2000-12
DOWNLOAD SPECSThe GM 2000-12
- Max lifting capacity 2000 pounds
- Maximum height 12′ – 6″
- 34″ wide
- 6′ – 8″ tall%
- 8′ – 4″ long closed
- Gross weight 3500 pounds
- Double redundant vacuum system
- Comes with 4 cups & 4 extension bars
Options available:
- Crab Crawl function
- EZ Pick function
- Winch & crane hook
- Hydraulic drive
- Double front & rear wheels
- Modular counterweight system with cart
- Running lights

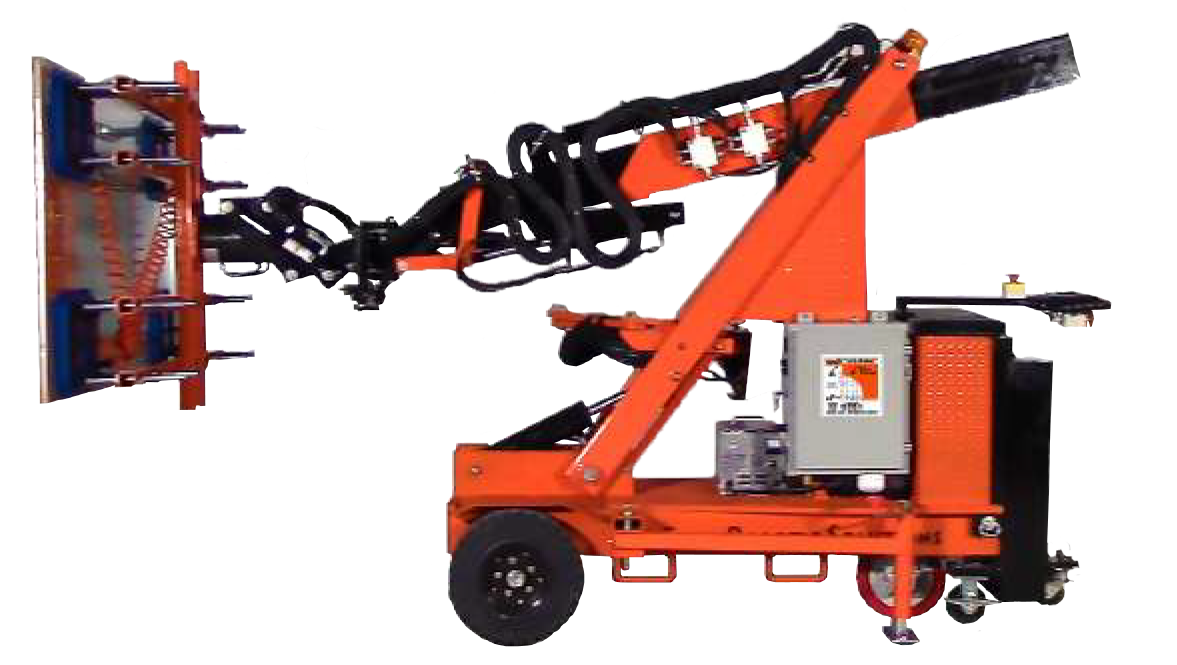

GM 2000-16 W
DOWNLOAD SPECSThe GM 2000- 16 W
- Max Lifting Capacity 2000 pounds
- Maximum Height 16′-6″
- Width 34"
- Tall 6'-8"
- Long Closed 8′ -4″
- Gross Weight 3500 Pounds
Options Available:
- Crab Crawl function
- EZ Pick function
- Comes With 4 Cups & 4 Extension Bars
- Double Redundant Vacuum System

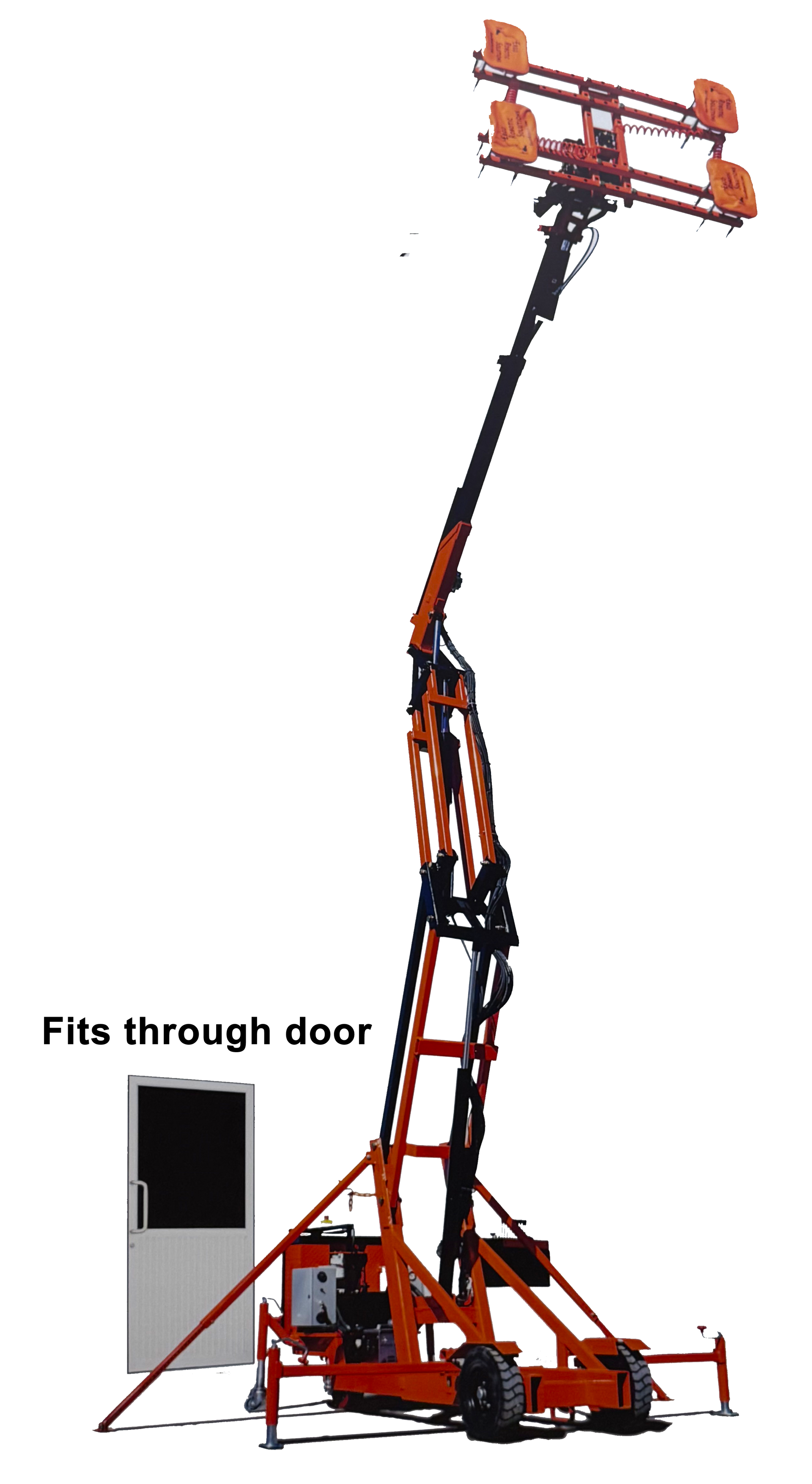

GM 2000-26
DOWNLOAD SPECSThe GM 2000 26
- Maximum capacity 2000 pounds
- Maximum height 26′
- 34″wide
- 6′ – 6″ tall
- 8′ – 6″ long closed
- Gross weight 3500 pounds
- Double redundant vacuum system
- Comes with 4 cups & 4 extensions, Standard
Options Available:
- Crab Crawl function
- EZ Pick function
- Lateral Side Shift
- Power Rotation
- 4 ea. 7” x 20” cups, with 2 ea. 4’ or 6’ extensions
- Supplementary counterweight plates, 75 lbs. ea.

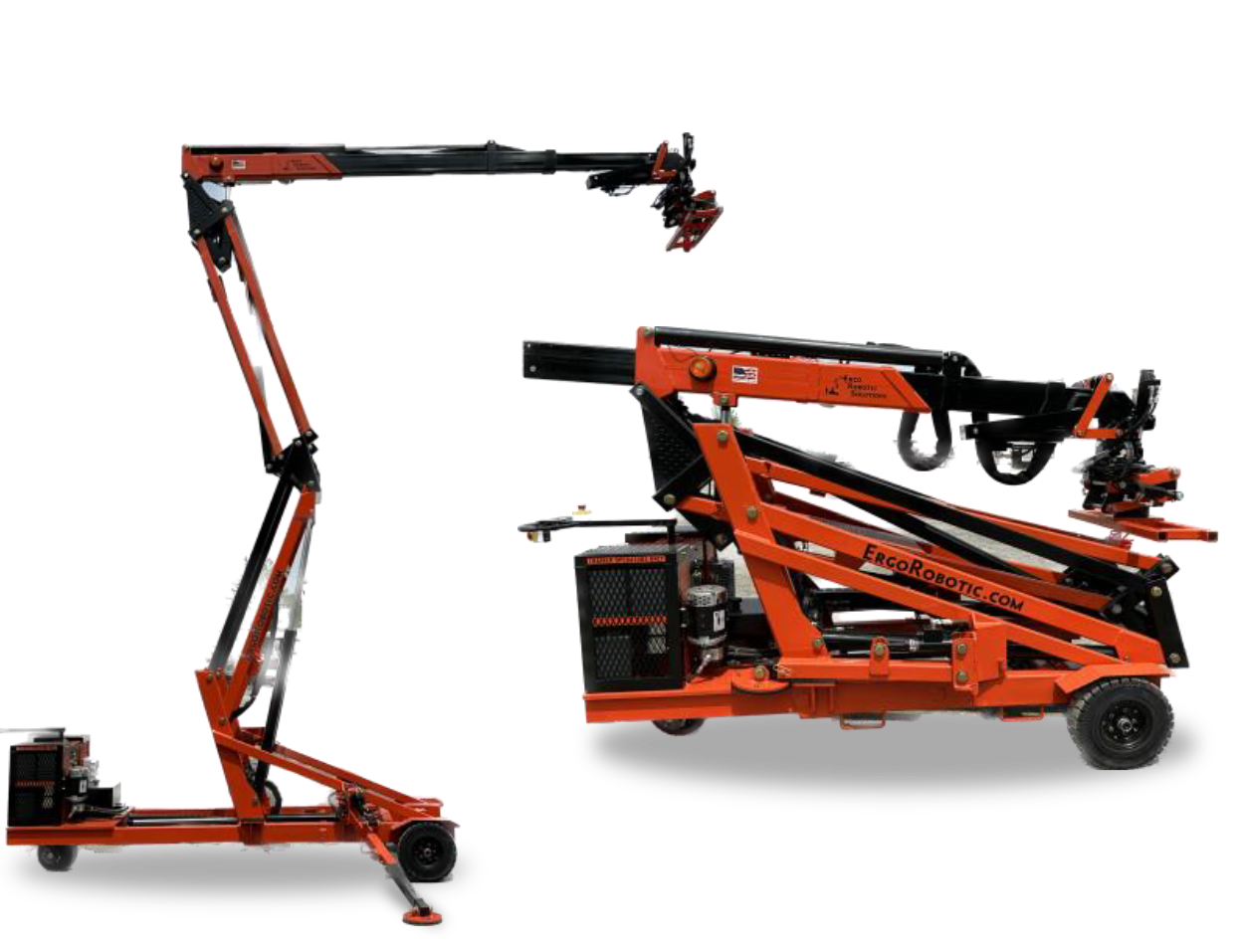

GM 2000-32
DOWNLOAD SPECSThe GM 2000-32
- Max Lifting Capacity 2000 pounds
- Maximum Height 32′
- Width 46"
- Tall 82"
- Closed Chassis Length 116"
- Open Chassis Length 152"
- Gross Weight 3600 Pounds
Options available:
- Crab Crawl function
- EZ Pick function
- Hydraulic drive
- Modular counterweight system with cart

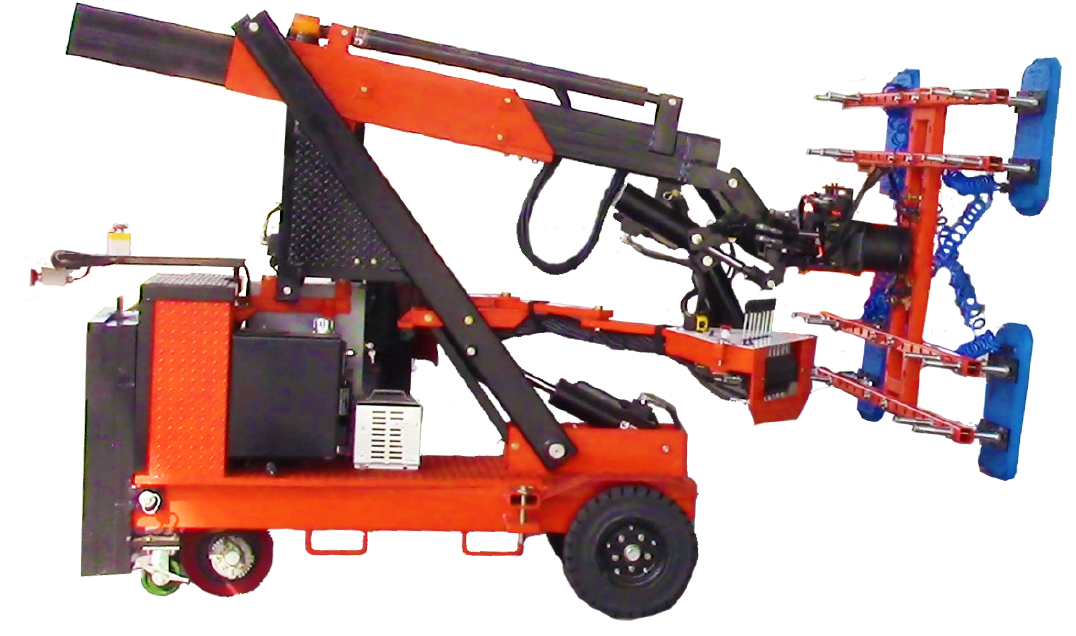

GM 4000-12
DOWNLOAD SPECSThe GM 4000-12
- Max Lifting Capacity 4000 pounds
- Maximum Height 12′
- Width 46"
- Tall 82"
- Closed Chassis Length 116"
- Open Chassis Length 152"
- Gross Weight 3600 Pounds
Options available:
- Crab Crawl function
- Hydraulic drive
- Modular counterweight system with cart

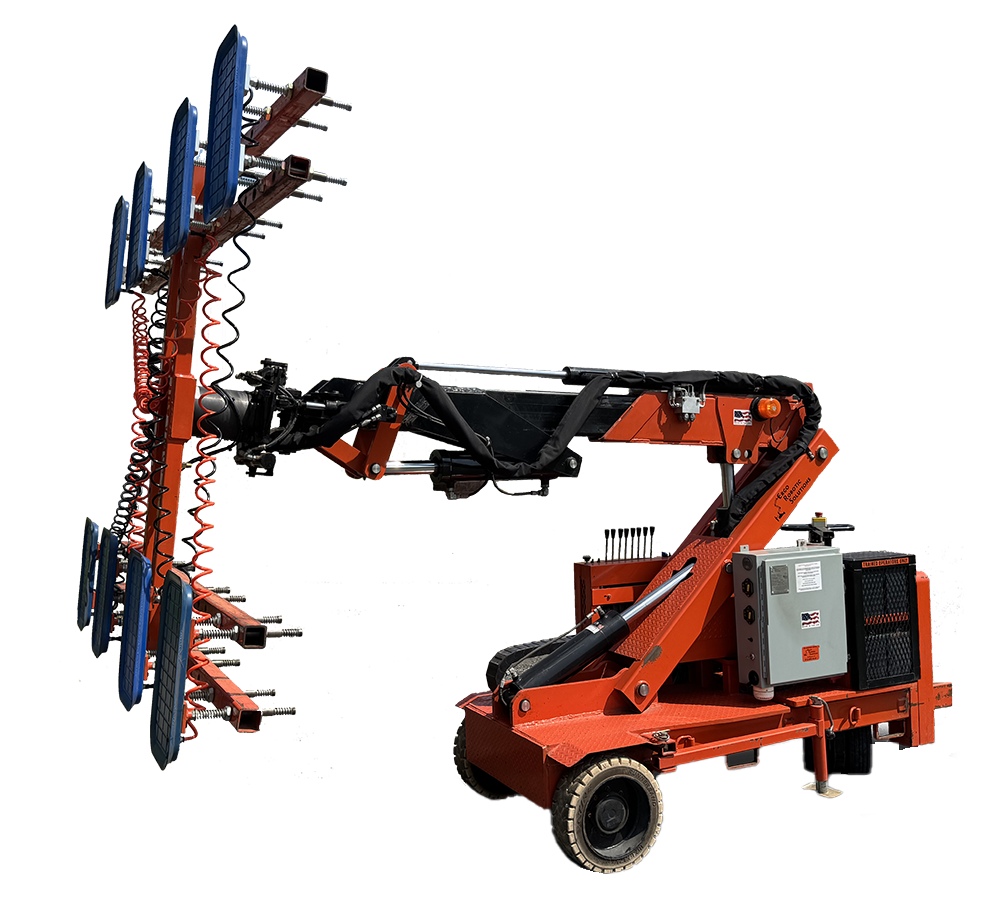

GM 5000-12
DOWNLOAD SPECSThe GM 5000-12
- Max Lifting Capacity 5000 pounds
- Maximum Height 12′
- Width 44"
- Tall 82"
- Closed Chassis Length 120"
- Open Chassis Length 168"
- Gross Weight 5400 Pounds
Options Available:
- Crab Crawl
- (12) 12” x 20” Cup Assemblies
- Double Redundant Vacuum System
- Running Lights

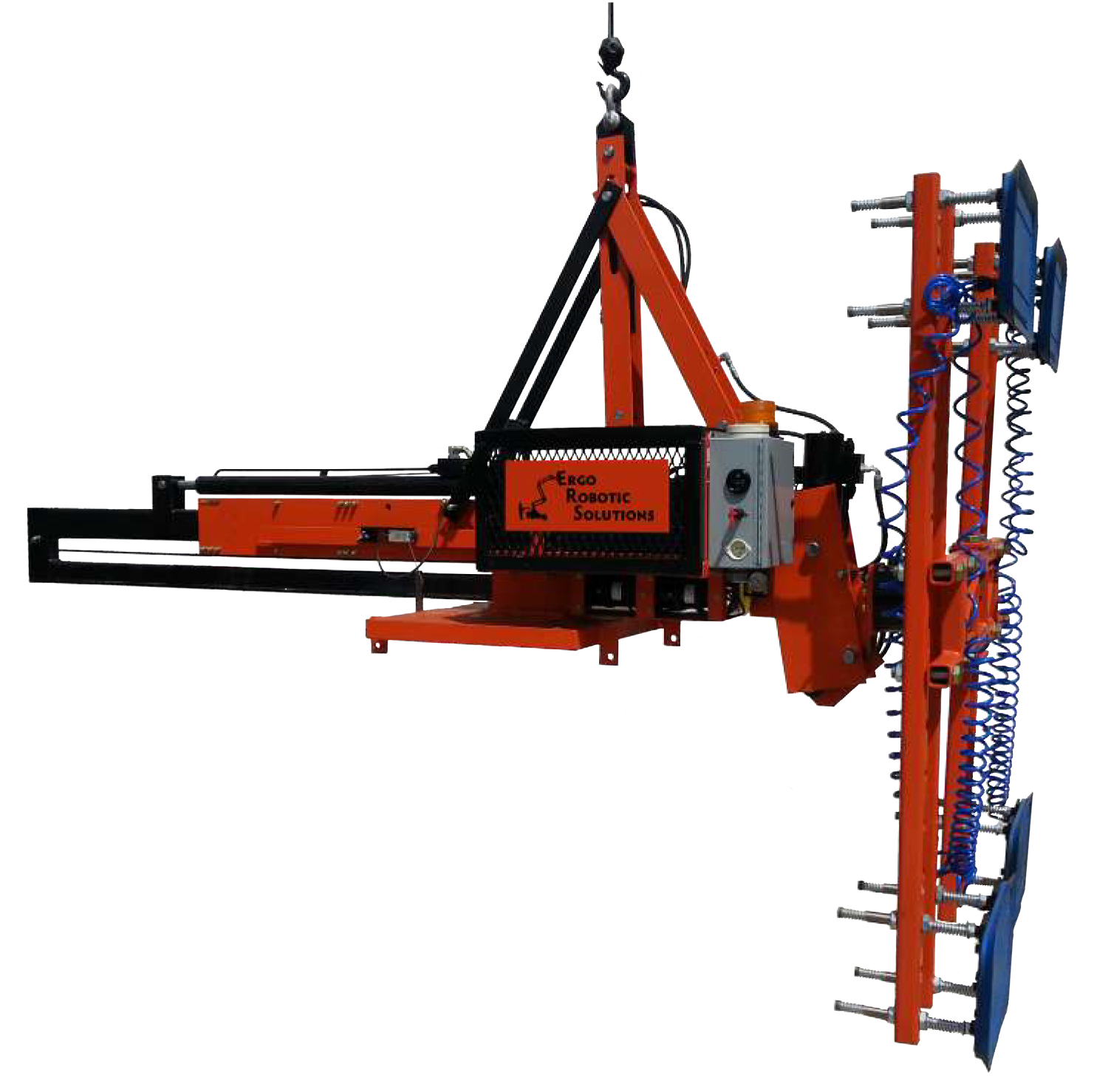

SKYHOOK WPI
DOWNLOAD SPECSThe Skyhook WPI
- Lifting capacity to 4000 pounds
- Wireless remote system
- Vertical to horizontal motion
- 180 degree rotation
- 8″ up and down for fine adjustment
- Double redundant vacuum system
The SkyHook WPI-C
- Designed for curtainwall installations
- Lifting capacity to 3000 pounds
- Can place 36’+ sections with little to no deflection.
- Quadruple redundant vacuum system

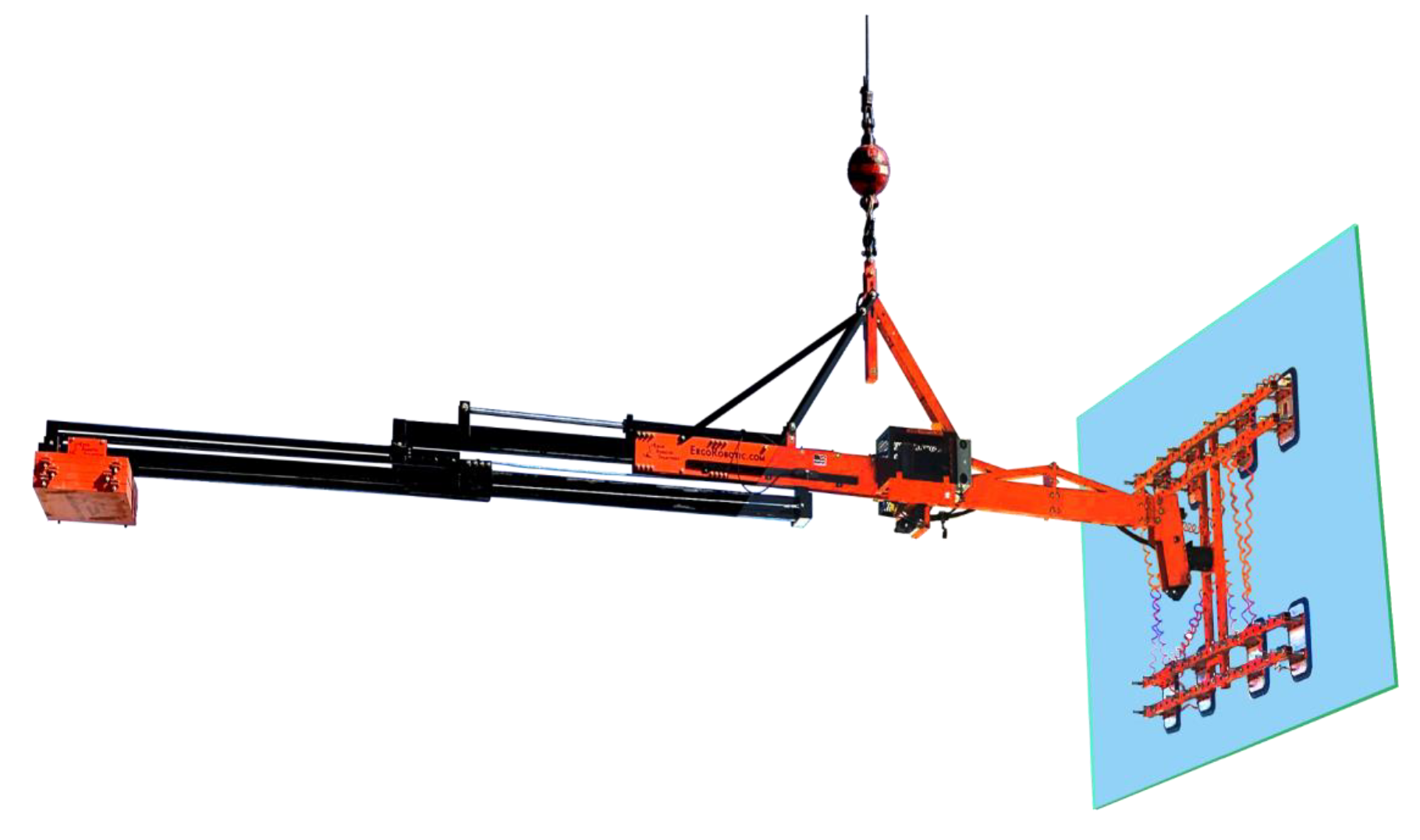

WPI-G2
DOWNLOAD SPECSThe WPI-G2
- Lifting capacity to 6000 pounds
- Wireless remote system
- Vertical to horizontal motion
- 180 degree rotation
- 6 direction manipulator motions
- Ajustable cantilever 6' & 11'
- Double redundant vacuum system

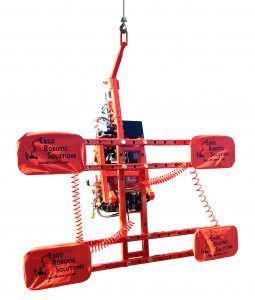

PLUMBLINE-2200
DOWNLOAD SPECSThe Plumbline-2200
The Plumbline-2200 is a crane-hung in-line manipulator that holds a panel to plumb (and beyond) with wireless controls.
- Lifting capacity to 2200 pounds
- Wireless remote system
- Vertical to horizontal motion
- 180-degree rotation
- A double redundant vacuum system
- Less than 48″ deep when in the vertical position
- Comes with 4 cups & 4 extension bars
Especially useful for tight spaces, the Plumbline weighs under 900 pounds and has multi-axis movement. It can be used as a self-contained gantry-hung vacuum lifter.

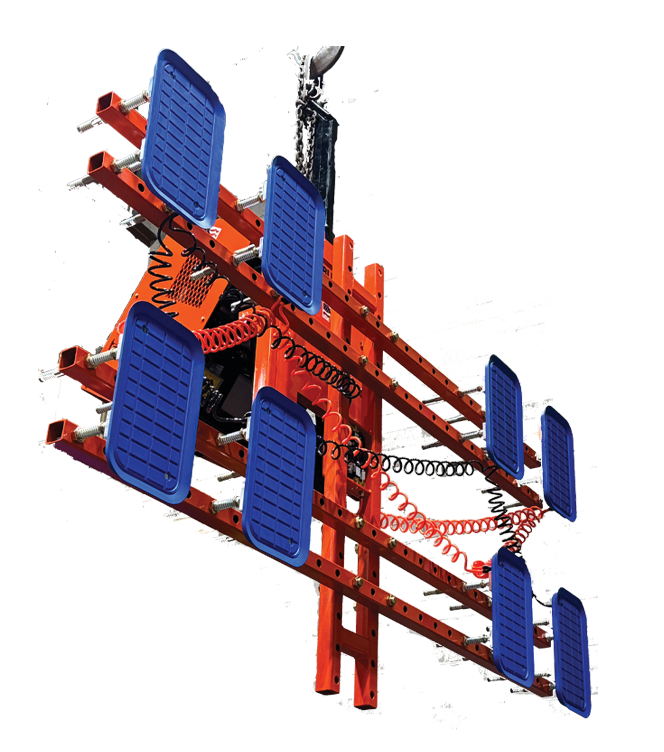

PLUMBLINE-4400
DOWNLOAD SPECSThe Plumbline-4400
The Plumbline-4400 is a crane-hung in-line manipulator that holds a panel to plumb (and beyond) with wireless controls.
- Lifting capacity to 4400 pounds
- Wireless remote system
- Vertical to horizontal motion
- 180-degree rotation
- A double redundant vacuum system
- Less than 48″ deep when in the vertical position
- Comes with 8 cups & 4 extension bars
The Plumb-Line weighs 1,100 pounds and has multi-axis movement. It can be used as a self-contained gantry-hung vacuum lifter.

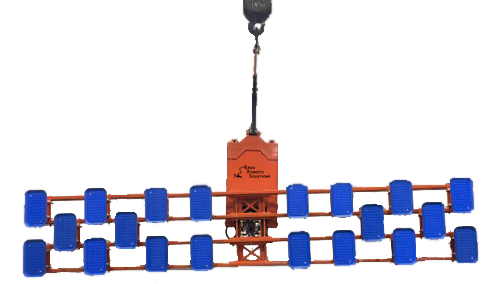

PLUMBLINE-8000
DOWNLOAD SPECSThe Plumbline-8000
The Plumbline-8000 is a crane-hung in-line manipulator that holds a panel to plumb (and beyond) with wireless controls.
- Lifting capacity to 8000 pounds
- Wireless remote system
- Vertical to horizontal motion
- 180-degree rotation
- A double redundant vacuum system
- Comes with 20 cups & 4 extension bars
The Plumbline weighs 3,400 pounds and has multi-axis movement. It can be used as a self-contained gantry-hung vacuum lifter.

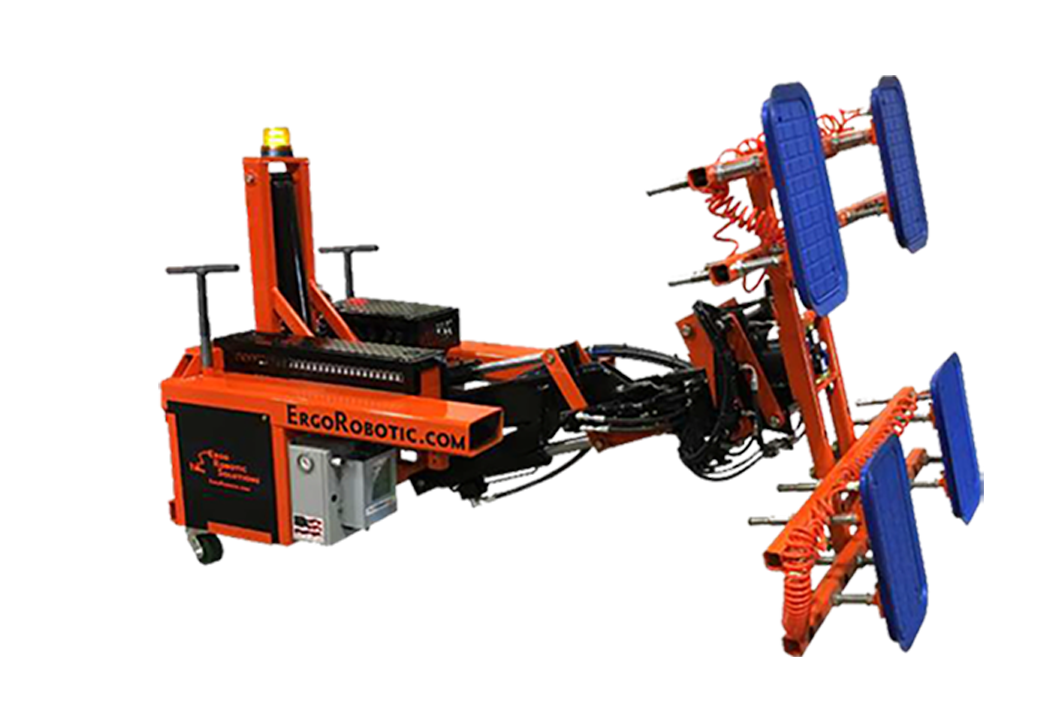

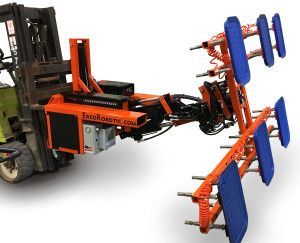

THOM 2200
DOWNLOAD SPECSThe THOM 2200
Telescopic Handler
Outdoor Manipulator
The THOM 2200 is a fork-attached adapter to turn any telescopic handler into a remote controlled multi-axis glass manipulator. The THOM 2200 has a 2200 lb. attachment capacity.
- Boom 90° up & 45° down
- Boom in & out
- Tilt up & down
- Swivel left & right
- Shift side to side
- Ergo’s EZ pick
- Rotate
- Double redundant vacuum system
Especially useful for the rough terrain of job sites, the THOM is limited only by the height & capacity of the attached handler. Grips any smooth material. Operates independently of handler by remote control.
THOM 4400
DOWNLOAD SPECSThe THOM 4400
Telescopic Handler
Outdoor Manipulator
The THOM 4400 is a fork-attached adapter to turn any telescopic handler into a remote controlled multi-axis glass manipulator. The THOM 4000 has a 4000 lb. attachment capacity.
- Boom 90° up & 45° down
- Boom in & out
- Tilt up & down
- Swivel left & right
- Shift side to side
- Ergo’s EZ pick
- Rotate
- Double redundant vacuum system
Especially useful for the rough terrain of job sites, the THOM is limited only by the height & capacity of the attached handler. Grips any smooth material. Operates independently of handler by remote control.
WHY USE OUR GLASS
INSTALLATION MACHINES
More Productive Manpower
With one of our glass installation machines and a trained operator, a small crew can install the needed glazing quickly and effortlessly, squeezing more production out of fewer laborers.
Reduce Temporary Equipment Costs
Reduce crane rentals, scaffold & staging costs as well as the need to fabricate makeshift solutions.
Safer Work Site
Safety comes from predictability and fine control. Reduce crane rentals, scaffold & staging and additional dangerous temporary structures. Eliminate the need for makeshift apparatus on the worksite.
Pays for Itself Quickly, Often in the First Job!
Save time, save money, and safeguard your products while enhancing personnel safety. Our cutting-edge glass installation machines not only pay for themselves, but often cover the entire cost after just one job! Experience firsthand how streamlining personnel, boosting efficiency, and minimizing risks can swiftly offset the investment in one of our machines, propelling your company towards an unbeatable edge in the future.
